Description

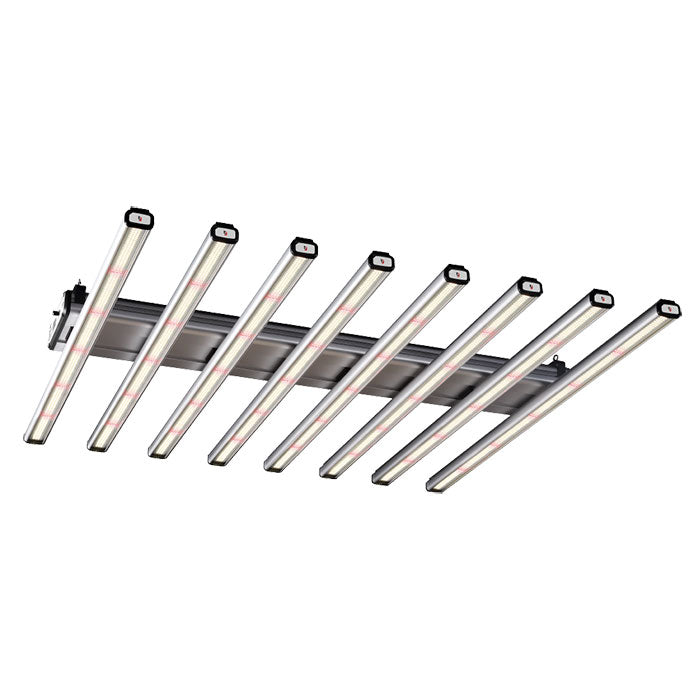

The Model-W is designed specifically for high PPFD cultivation practices in vertical farming
This fixture is a full-spectrum LED grow light. The design covers each critical phase of growth from vegetative to flowering. The spectral tuning capability allows growers to experiment with spectrum recipies.
An independent Far Red 730nm channel is designed to target Phytochrome Far Red in photomorphogenic lighting applications. Delivering far-red light to then crop at certain times allows growers to manipulate plant responses, flower faster, and boost yields. *Recommend introducing Far Red light for 15mins after day cycle. TrolMaster Hydro-X Controller and Lighting Adaptor T (LMA-T) are required.
- Outstanding Efficiency
- Plug and Play for a quick installation
- On-board Dimming
- Independent Far Red 730nm channel
- External Controllability with 256 fixtures per channel
- Group Control Capability
- *Comes with a 240V standard power cord.
ThinkGrow LED Model Comparison
Model-H
The Model-H is designed specifically for high PPFD cultivation practices in vertical farming. Full spectrum design covers each critical phase of growth from vegetative to flowering. The spectral tuning capability allows growers to experiment with spectrum recipies.
Model-W
The Model-W is designed for high PPFD cultivation practictices in vertical farming. Full spectrum design covers each critical phase of growth from vegetative to flowering. An independent Far Red 730nm channel is designed to target Phytochrome Far Red in photomorphogenic lighting applications.
Model-V
The Model-V is designed for vegetative cultivation practices in commercial cultivation or home hobbyists cultivating with CO2 supplementation. An independent Far Red 730nm channel is designed to target Phytochrome Far Red in photomorphogenic lighting applications.
View the Comparison Table for all 3 models down below
We have replacemnt LED Light Bars and LED Drivers for each model of ThinkGrow LED! Give us a call and a sales rep will be able to help you gather all the replacement parts you need.
Benefits of the ThinkGrow Model-W LED Grow Light
Full Spectrum Design
Covering each phase of growth is critical and the ThinkGrow Model-H does just that with its full spectrum design bringing in every type of light possible to your grow room.
Take your crops from veg to bloom and give them an extra dose of deep red with the independent "Far Red Channel"
Far Red Channel
An independent Far Red 730nm channel is designed to target Phytochrome Far Red in photomorphogenic lighting applications. Delivering far-red light to then crop at certain times allows growers to manipulate plant responses, flower faster, and boost yields.
External Controllability with TrolMaster Hydro-X
Both Hydro-X & Hydro-X Pro provide the following functions:
- Separate Day - Night Settings
- Controls commercial dehumidifiers
- Controls 2 separate lighting channels
- Remote monitoring using free app
- Can control lights using PPFD / PAR meter
- Control HVAC and mini-split
- Controls commercial humidifiers
- Controls supplemental CO2
- Controls timed devices
- Sava data on microSD card
The Hydro-X Environmental controller from TrolMaster is one of the most sophisticated light controllers on the market. By combing this controller with your ThinkGrow LED, you bring in an entire suite of professional tools to to maximise your light and yields.
A single LMA-T Adapter is all that is need with the controller and you are ready to start controlling your ThinkGrow LEDs with TrolMaster
Specifications for ThinkGrow Model-W
- PPF: 1600 umol/s
- Efficacy: 2.6 umol/J
- Input Power: 630 Watts (Full Spectrum) / 20 Watts (Far Red)
- Power Factor: > 90%
- Dimensions: 45" x 44.6" x 4.44" (LxWxH)
- Weight: 38.8 lbs.
- Mounting Height: > 6" (15.2 cm) above canopy
- Lifetime: L90: > 54,000 hours
- Warranty: 5 years standard warranty
- Input Voltage: Autosensing 100-270 Volts
- Amp Draw: 5.24 @ 120 Volt / 2.67 @ 240 Volt / 2.35 @ 277 Volt
- Input Plug Type: NEMA 6-15 240V Plug standard included. An adapter can be used to utilize the autosensing capabilities.
ThinkGrow Model Comparison
| Model | Model-H |
|---|---|
| PPF | 1700 µmol/s |
| BTU | 2149.65 btu/hr |
| Input Power | 630 Watts |
| Input Voltage | Autosensing 100-277 Volts |
| Adjustable Spectrum | Yes |
| Far Red Channel | No |
| On Board Dimming | Yes |
| External Control | 256 Fixtures / Channel |
| Group Control | Yes |
| Model-W | Model-V |
| 1600 µmol/s | 900 µmol/s |
| 2149.65 btu/hr | 1194.25 btu/hr |
| 630W Full Channel/20W Far Red | 350W Full Channel/10W Far Red |
| Autosensing 100-277 Volts | |
| No | No |
| Yes | Yes |
| Yes | Yes |
| 256 Fixtures / Channel | |
| Yes | Yes |
