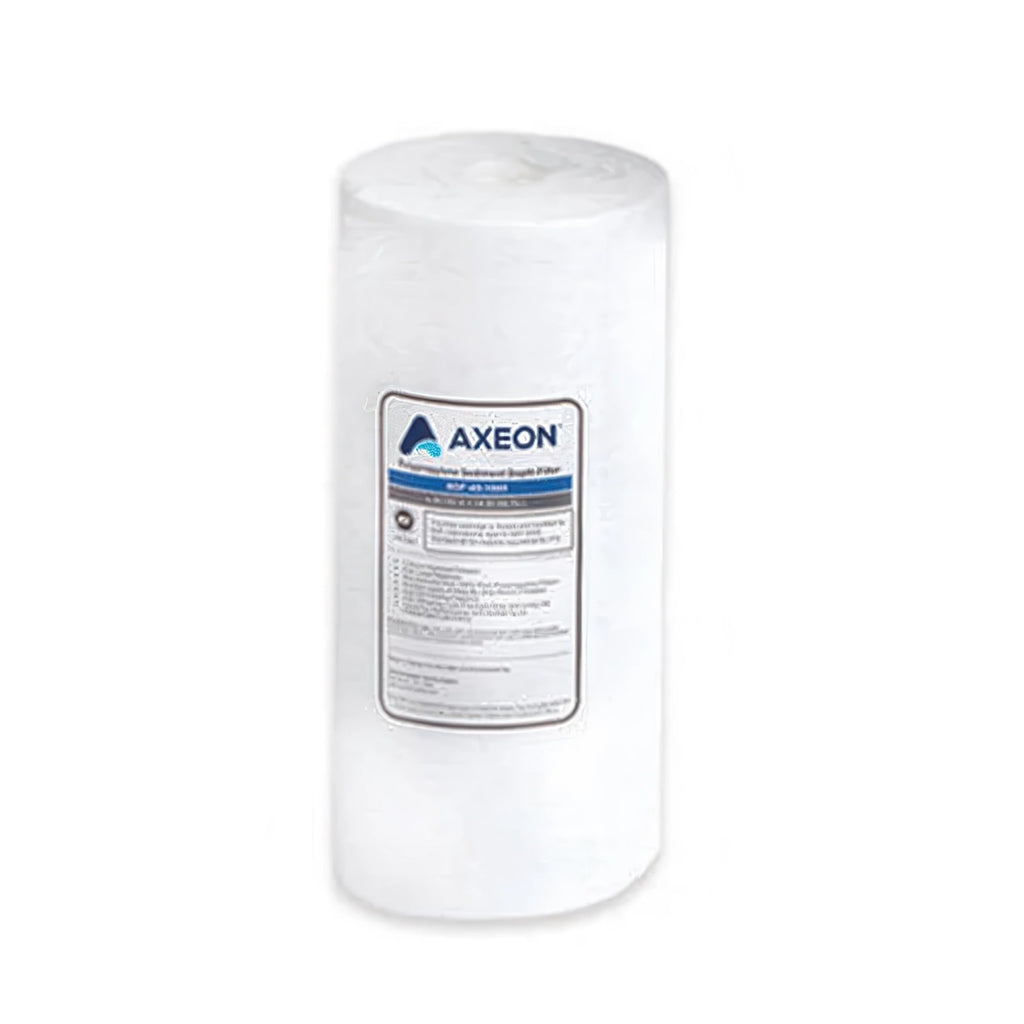

The AXEON® SDF-45-1005 Polypropylene Sediment Depth Filter Cartridge provides an economical, high-quality option for sediment and particulate reduction in pre- and post-filtration applications. Fits standard 4.5" x 10" filter housings including Pentair® Big Grey housings. Used as a single stage of particulate filtration or as an integrated stage within a complete water treatment system.
AXEON SDF-Series cartridges feature a multi-stage depth filtration design with four separate layers of graded-density micron filtration. The outside-in flow captures larger particles in the outer layers and progressively finer sediment toward the center - resulting in higher dirt-holding capacity and lower pressure drop than conventional spun polypropylene and string wound cartridges.
Features
- Multi-stage graded density depth filtration - four layers capture progressively finer particles from outside in
- Higher dirt-holding capacity than standard spun polypropylene and string wound cartridges
- Outside-in flow technology for minimal pressure drop
- Manufactured from 100% pure polypropylene fibers
- Surfactant, binder, and adhesive free
- High chemical resistance
- Certified to NSF Standard 42
- FDA listed materials
Specifications
-
Model: SDF-45-1005
-
Diameter: 4.5"
-
Length: 10"
-
Micron Rating: 5 micron
-
Media: 100% pure polypropylene fibers
-
Flow Direction: Outside-in
-
Certifications: NSF Standard 42
