Description
State-Of-The-art Double-Ended Technology That Uniformly Delivers Optimum PAR Value Over A Broad Footprint.

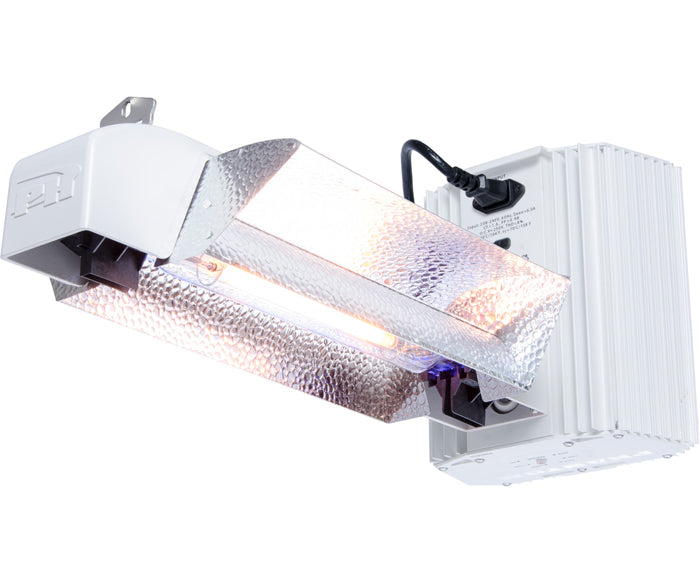

Introducing the Phantom 50 Series Double Ended Open Lighting System with USB Interface
At the heart of this system is the Phantom Commercial DE Ballast. It is designed with a high precision microprocessor that makes it highly efficient, and extremely reliable. It is totally silent and lightweight. Its USB interface enables connection with the Autopilot PX2 Advanced Digital Lighting Controller. The PX2 provides centralized, dual-zone digital control of your DE lighting, allowing you to switch, dim and boost multiple (USB-compatible) Hydrofarm ballasts at once—up to 256 in each of two independent zones for a total capacity of 512 ballasts.
Rounding out this kit are our PHRW1 Open Reflector and a European-made premium DE lamp with a rated PAR output of 2100 µmol/s.
The Phantom 50 Series 1000W Open Lighting System comes in 5 variartions: 120V/240V, 208V/240V, 277V, and 480V.
1.) Designed for optimum heat management and longer lamp life
2.) Phantom Commercial DE Ballast with high-precision microprocessor and patented ignition control, has internal RF shielding and FCC compliance
3.) USB connection for use with Autopilot PX2 Advanced Digital Controller
4.) Unidirectional vent plug
5.) European 2100 μmol/s DE lamp
6.) Open Reflector - 95% reflective European specular hammertone aluminum
7.) German Vossloh-Schwabe K12 x 30s high temperature lamp holders
8.) Integrated hangers for easy mounting
Ballast Features
- USB interface provides full compatibility with Autopilot PX2 Advanced Digital Lighting Controller
- High-precision microprocessor control
- Six-way wattage output control: 600W, 750W, 825W, 1000W, and 1150W + PX2 control mode
- Robust commercial design
- Superior reliability
- LED status indicator
- Internal RF shielding
- Patented ignition control
- End of lamp life signal
- Auto-restrike feature protects valuable lamps from damaging power interruptions
- Cooling fins for maximum heat dissipation
- Suitable for use in damp locations
- Features an IEC power connection and comes with an 8' power cord with EMI suppression and a NEMA plug
- Includes 15' USB-RJ12 Controller Cable Pack
Lamp Features
- High proportions of red and blue light guarantee efficient photosynthesis
- Excellent PAR output (2100 µmol/s)
- Quartz glass outer jacket for superior optical quality
- Lamp design eliminates shadowing from arc tube support
- Designed for use with Hydrofarm and PARsource high frequency DE fixtures and ballasts
Reflector Features
- Double-ended system delivers higher PAR value with excellent uniformity
- Open design for maximum light output, optimum heat management, and longer lamp life
- Premium aluminum European hammertone interior: 99.85% pure, 95% reflectivity
- Provides a broad, consistent light spread
- Compact design minimizes interference with sun in greenhouse applications
- The ideal reflector choice for lower mounting heights
- Requires fewer reflectors to meet desired light levels
- Highly efficient in overlapping multi-light configurations
- European-made VS K12 x 30s high temperature lamp holders
| Lighting Fixture Code | PHDEOK11 | PHDEOK12 | PHDEOK13 | PHDEOK14 | PHDEOK15 |
|---|---|---|---|---|---|
| Ballast Model | PHB5015 | PHB5010 | PHB5020 | PHB5025 | PHB5030 |
| Lamp Power | 1000W | 1000W | 1000W | 1000W | 1000W |
| Main Voltage | 208-240V | 120-240V | 277V | 347V | 480V |
| Operating Voltage Range | 185-265V | 110-265V | 255-300V | 310-380V | 450-510V |
| Max Input Power | 1236W | 1246W | 1236W | 1236W | 1215W |
| 8' Power Chord | 240V 16/3 IEC | 120V 16/3 IEC | 277V 16/3 AWG | 347V 16/3 AWG | 600V 16/3 AWG |
| NEMA Plug | 6-15 | 5-15 | L7-15P Twist Lock | L24-20P Twist Lock | L8-20P Twist Lock |
