Description

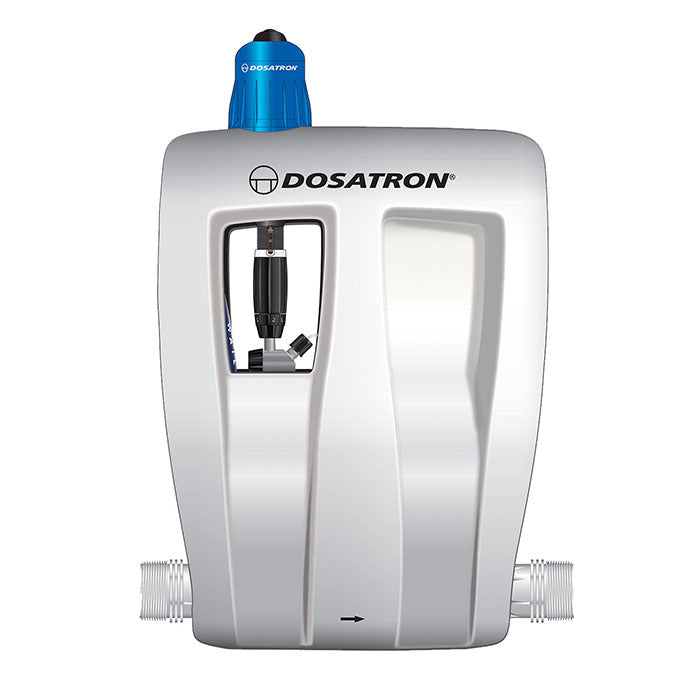

Dosatron's Mega-Flo Series Fertilizer and Chemical Injectors
The D132 Series of fertilizer and chemical injectors is part of the Mega-Flo Series! These models have the water flow capacity of 132 gallons per minute.
The D132 models are the perfect solution to inject soluble fertilizer, while the low injection rate model (1:30,000) is for direct injection of water treatment chemicals.
D400 Series Injection Ratios
- D132MZ1 - 1:1000 to 1:100
- D132WL5000 - 1:5000 to 1:500
- D132WL30000 - 1:30000 to 1:3000
The D132 is great for:
- Fertilizers
- Insecticides
- Fungicides
- Algicides
- Acids
- Wetting Agents
- Disinfectants
- Compost Tea
- Hydroponics
- Chlorine Dioxide
- Chlorine
Unit Installation Example
Specifications for the D132 Series
| Model | D132MZ1 |
|---|---|
| Dilution Range | 1:1000 to 1:100 |
| Injection Percents | 0.1 to 1% |
| Water Flow Range | 35.2 to 132 GPM |
| Operating Pressure Range | 7 to 87 PSI |
| Weight | 33 lbs |
| Connection Size | 3" NPT |
| Maximum Temperature | 104°F |
| D132WL5000 | D132WL30000 |
|---|---|
| 1:5000 to 1:500 | 1:30000 to 1:3000 |
| 0.02 to 0.2% | 0.003 to 0.03% |
| 35.2 to 132 GPM | 35.2 to 132 GPM |
| 7 to 87 PSI | 7 to 87 PSI |
| 33 lbs | 33 lbs |
| 3" NPT | 3" NPT |
| 104°F | 104°F |
