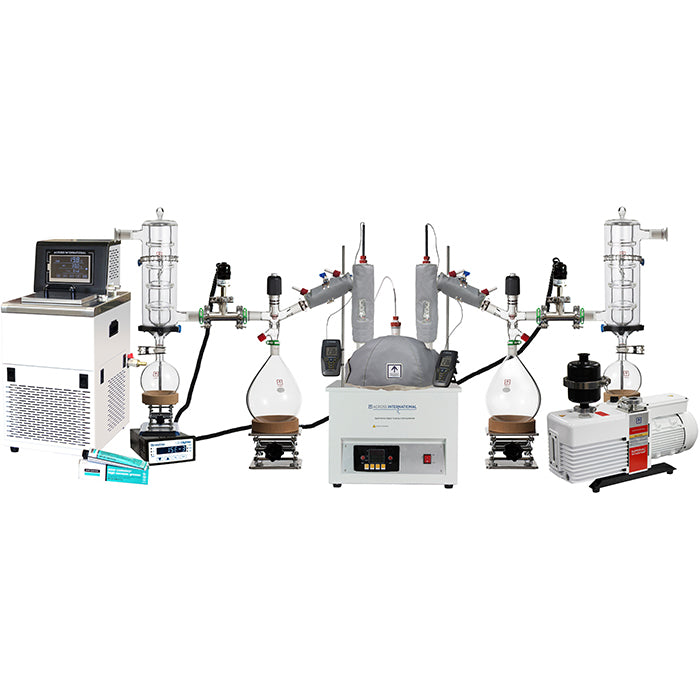

The all new Ai 10 liter short path turnkey system offers you the best glassware and equipment in the market.
Ai Clear10 short path distillation kit features:
- The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
- Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- Ai Heavy wall glassware for durability
- Vacuum jacketed vapor channel
- Boiling flask to distillation port: 34/45 joint
- Thermo port on boiling flask: 24/40 joint
- Thermo port on distillation head: 14/20 joints
- Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
- Glass material: high borosilicate glass 3.3
- T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
| Part description
| Quantity
| |
| DigiVac StrataVac vacuum regulator with dual sensors (100-240V) | 1 set |
| Ai SuperVac 21 cfm, 0.3 micron, dual-stage, corrosion-resist pump with adjustable gas ballast and exhaust oil mist filter - 110V | 1 set |
| Ai C20 -20°C to 99°C 7L capacity recirculating chiller - 110V | 1 set |
| Ai DigiM10 10L mantle with two 4-prong clamps - 110V | 1 set |
Ai T1 2L glass vacuum cold trap with 24/40 joints (T1-2440)
| 2 sets |
Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port
| 2 pcs |
Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks
| 1 pc |
| PTFE 14/20 and 24/40 joint thermometer inlet adapters with Viton gaskets | 3 pcs |
| Ai 14/20 joint, pennyhead glass stopper | 2 pcs |
Ai 24/40 joint, round-top glass feeding funnel
| 1 pc |
Ai 24/40 single cow adapter with PTFE valve and viton gasket
| 2 pcs |
| Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask | 2 pcs |
| Ai glass 3/8" hose barb tee adapter | 3 pcs |
| Ai glass 24/40 male to male adapter | 1 pc |
| Stainless steel keck clips, 24/40 x 2, 34/45 x 2 | 4 pcs |
24/40 joint, plastic keck clip
| 8 pcs |
Cork ring stand for 1L or 2L pear-shaped flasks
| 2 pcs |
6 x 6" stainless steel lab jack (min. height 3", max height 9.5")
| 2 pcs |
Ai HeadShield fabric insulation sleeve with window for 5L heads (right x 1, left x 1)
| 2 pcs |
|
|
